Suggested Port Dimensions

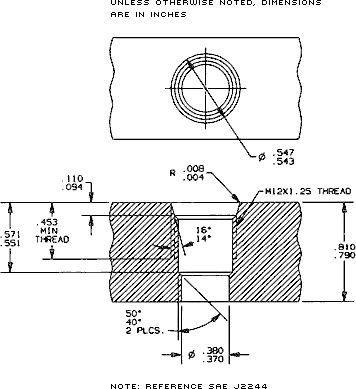

Suggested port for 12mm straight threads with external O–ring Per SAE J2244:

O–ring is usually included with out 112CP pressure temperature sensor if ordered with 12mm threads
Standard O–ring material: Neoprene (HNBR available if required)
Chamfer at port surface is a must for proper sealing


*
