Klixon® AT Pushbutton Package Designs



Available in a wide variety of packaging styles
Packaging options are available for one, two, or multiple poles
Custom packaging is available to suit your needs, whatever they may be

Listed below is information about a popular device in this category.

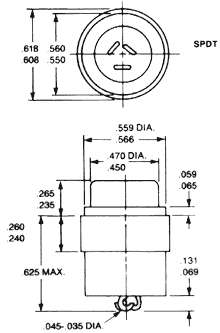

Diagram
* * *
Klixon
Product Image

Contact a product specialist.

Request a catalog.


Part Numbers
Typical Actuation Characteristics
AT390
10AT421
Typical Actuation Characteristics

SPDT

DPDT

These pushbutton switches are designed to be thumb or finger actuated. A variety of panel or other mounting means are available.
Maximum Actuating Force (STP)
40 oz.
8 oz.
Minimum Release Force (STP)
- - -
1 lb.
Button Seal / MIL-PLF-8805
- - -
- - -
Maximum Pretravel
.040 inch
.020 inch
Maximum Movement Differential
- - -
.010 inch
Minimum Overtravel
- - -
.200 inch
Positive Overtravel Stop
No
No
Maximum Force on Actuator
25 lb.
30 lb.
